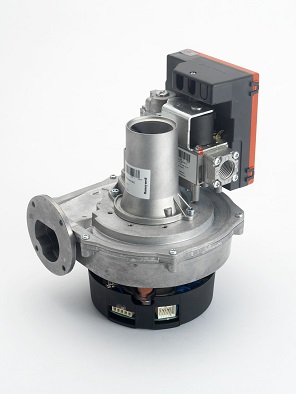

Premix gas burner range





Infraglo use the latest technology to ensure optimum premix performance. Small but highly efficient fans are used to draw air through a venturi. A needle valve allows gas to be drawn into this airstream at a pre-determined rate to ensure highly accurate gas air ratio. When combusted this premixed fuel can transfer all its energy to the substrate being heated, rather than it being diluted by excess air.

Accurate control of the fan ensures this ratio is maintained throughout the turndown range of the burner and the fan speed can be controlled by a manual speed knob so the operative can "fine tune" the output of the burner to the required production speed. In critical applications control can be further enhanced by the using a plc to regulate fan speed and a signal can be provided by an infra red sensor or another similar device.





The premix system can be adapted and used in conjunction with our vitreous enamelled range of burners. These burners can also be fabricated from stainless steel if required, making them suitable for all food production industries.

These burners use a gas and air control system that ensures the perfect mix for combustion, guaranteeing the most efficient burner with unbeatable heat control and an extreme reduction of noxious emissions.



 Benefits of Premix Burners

  • High turndown ratio: up to 10:1
  • Efficient combustion
  • Low CO and NOx
  • Full modulation
  • Low noise generation
  • Uniform surface temperature
  • Low running cost
  • Low capital cost
